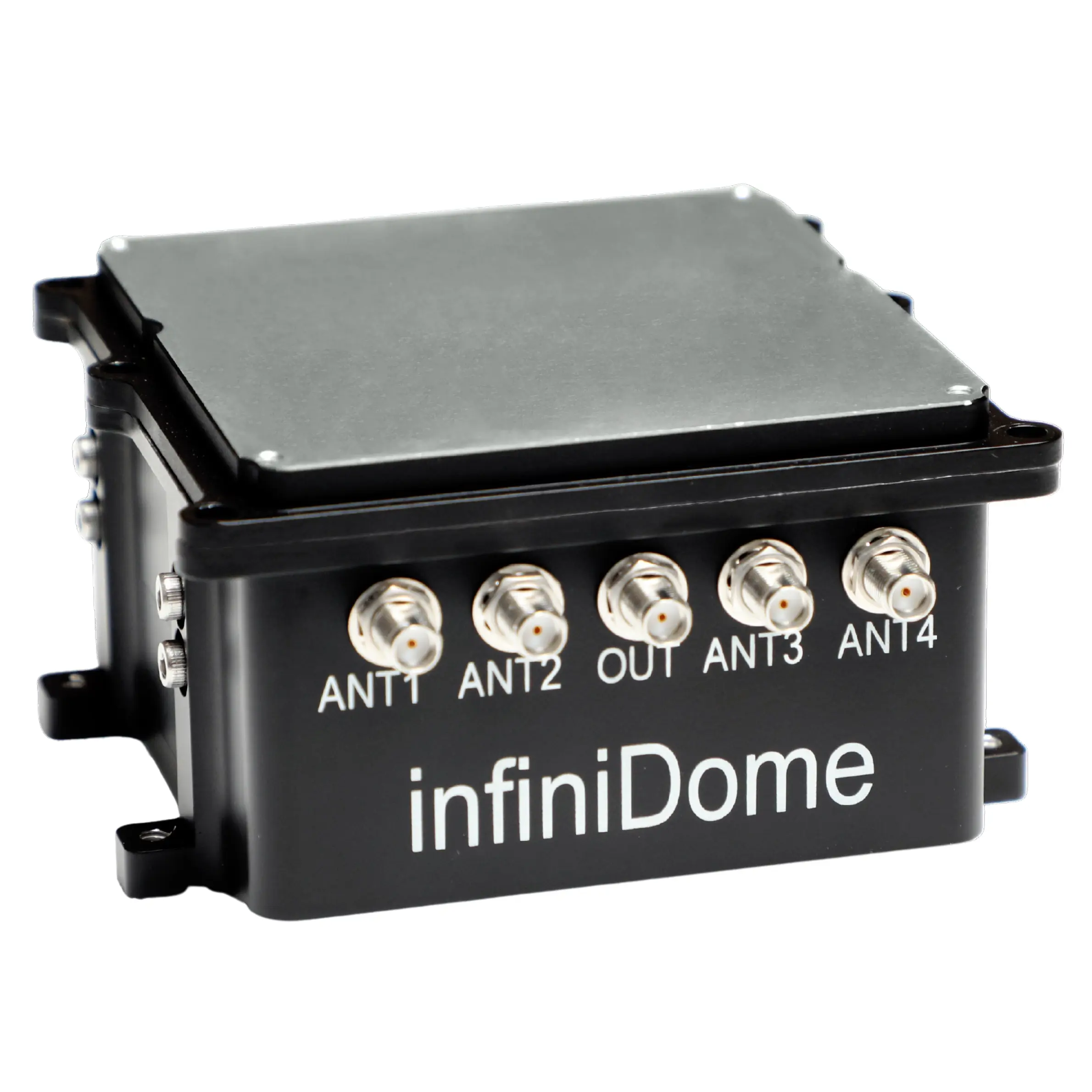

GPSdome 2

GNSS Multi-Band 4-Element Anti Jammer

clearbackground_GPSdome2 1

Description

GPSdome 2 is the industry’s first high-end anti-jamming and fully retrofit solution tailored for defending manned and unmanned Ground Vehicles, drones and small-med UAVs from jamming attacks. Fully retrofit, it is compatible with almost any GNSS off the shelf receiver. Using up to 4 off-the-shelf active antennas, with dual-band protection (GPS L1+L2 or GPS L1+Glonass G1) it protects from up to 3 jamming directions simultaneously in each band. With optional mil-spec compliance, it is the only anti-jamming solution relevant for smaller and lighter platforms.

Features

Small sized

87 x 91 x 61.55mm

Light weight

500g

Robust

Protects from up to 3 jamming directions simultaneously

Safe and compliant

IP65 waterproof rating
Automotive temperature grade -40 to +71 Celsius

Power consumption

~ 9W

Protect

GPS L1 + GLONASS G1
GPS L1 + L2

Latency

≈100ns (constant)

Insertion loss

6dB

Null steering algorithm

With proprietary signal filtering technology attenuating up to 3 directions of jamming in each protected frequency simultaneously

Intel gathering

# of jammers, power & frequency of jammers​
